Specifications

Engine Type Air cooled, 4-stroke,SOHC, 2-valve
Hybrid Equipped
Displacement 125 cc
Bore & Stroke 52.4x57.9mm
Compression Ratio 10.2:1
Maximum Horse Power 6.0kW(8.2PS)/6500r/min
Maximum Torque (With Assist Function Working) 10.3 N.m(1.1kgf.m)/5000 r/min
Stop & Start System (SSS) Equipped
Fuel System Fuel injection
Starting System Type Electric starter and kick starter
Transmission type V-Belt Automatic
Smart Motor Generator(SMG) System Equipped
Overall Length x Width x Height Disc/Drum:1,880 x 685 x 1,190 (Spec. in mm)
Seat Height 785mm
Wheelbase 1280mm
Minimum Ground Clearance 145mm
Weight (with Oil & a Full Fuel Tank) 98kg
Fuel tank capacity 5.2 L
Underseat Storage 21 L
Suspension Type(Front/Rear) Telescopic Fork/Unit Swing
Tyre Size (Front) 90/90-12 Tubeless
Tyre Size (Rear) 110/90-10 Tubeless
UBS Equipped
Brake type (Front) Disc: 190mm Drum: 190mm
Brake type(Rear) Drum
Battery Maintenance free - 12V,5.0 Ah
Ignition system TCI (Transistor Controlled Ignition)
Headlight (Class C) Disc: LED Drum: Halogen 12V,35/35W x 1
Brake light/Tail light 12V,21/5W x 1
Position Light LED
Side Stand Engine Cut-Off Switch Equipped
Meter Console Disc: Digital / Drum : Analogue
Bluetooth (Yamaha Motorcycle Connect X) Disc: Equipped Drum: Available as accessory

RAYZ THE GAME

RayZR Street Rally 125 Fi with Hybrid power assist is powered by air cooled, fuel injected (Fi), 125 cc blue core engine. The unique “Automatic Stop & Start System” prevents engine idling and subsequently starts with a single throttle twist which uses the sensors to assess the riding environment. The “Smart Motor Generator (SMG)” fitted to the RayZR Street Rally 125 Fi Hybrid brings a quieter engine start without the need for a separate conventional electric starter. Headlight is equipped with LED Position Light for enhanced visibility. It comes with Digital Meter Console and Y-Connect Bluetooth connectivity to create a strong bond between Scooter and Rider.

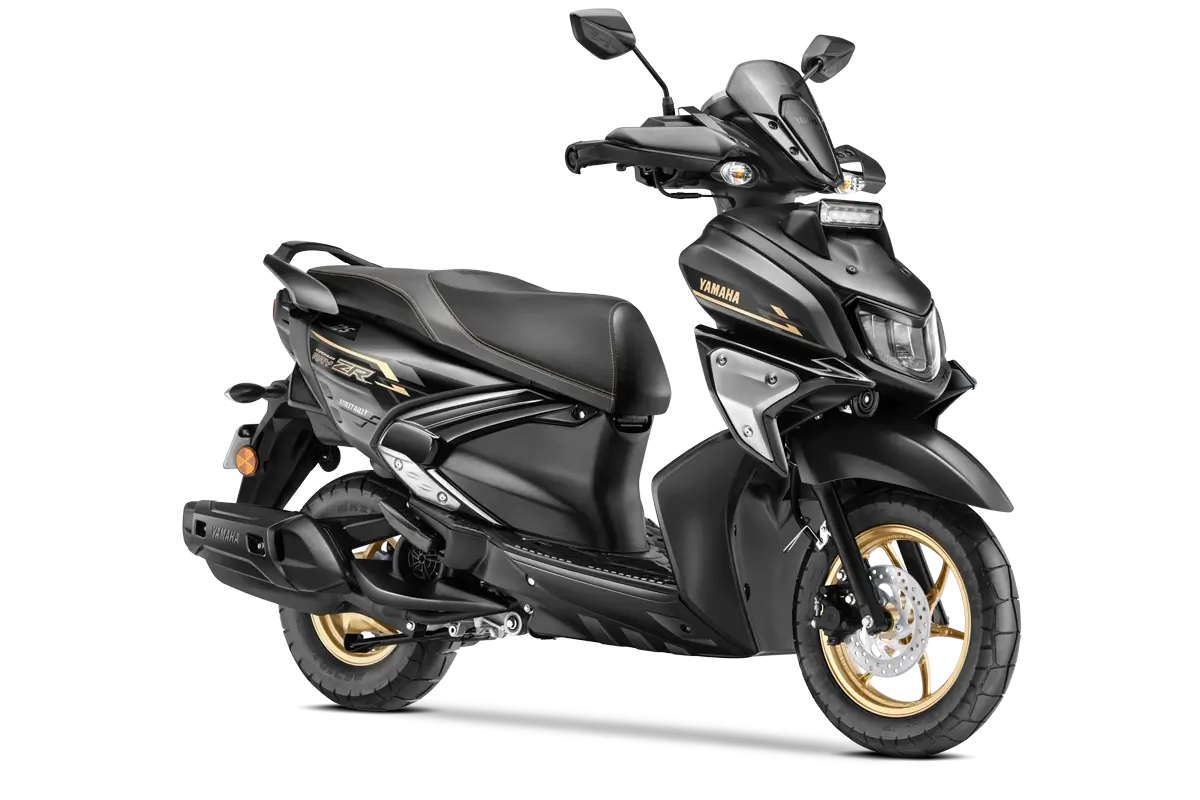

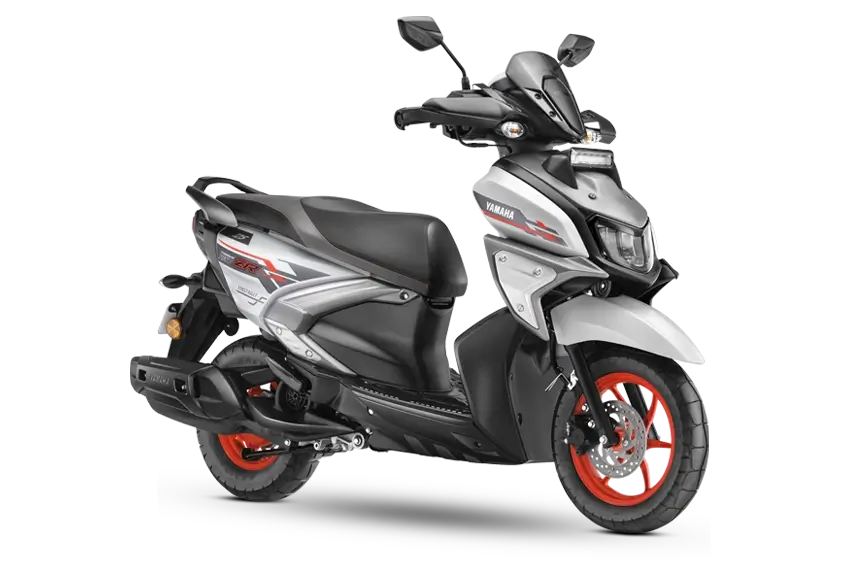

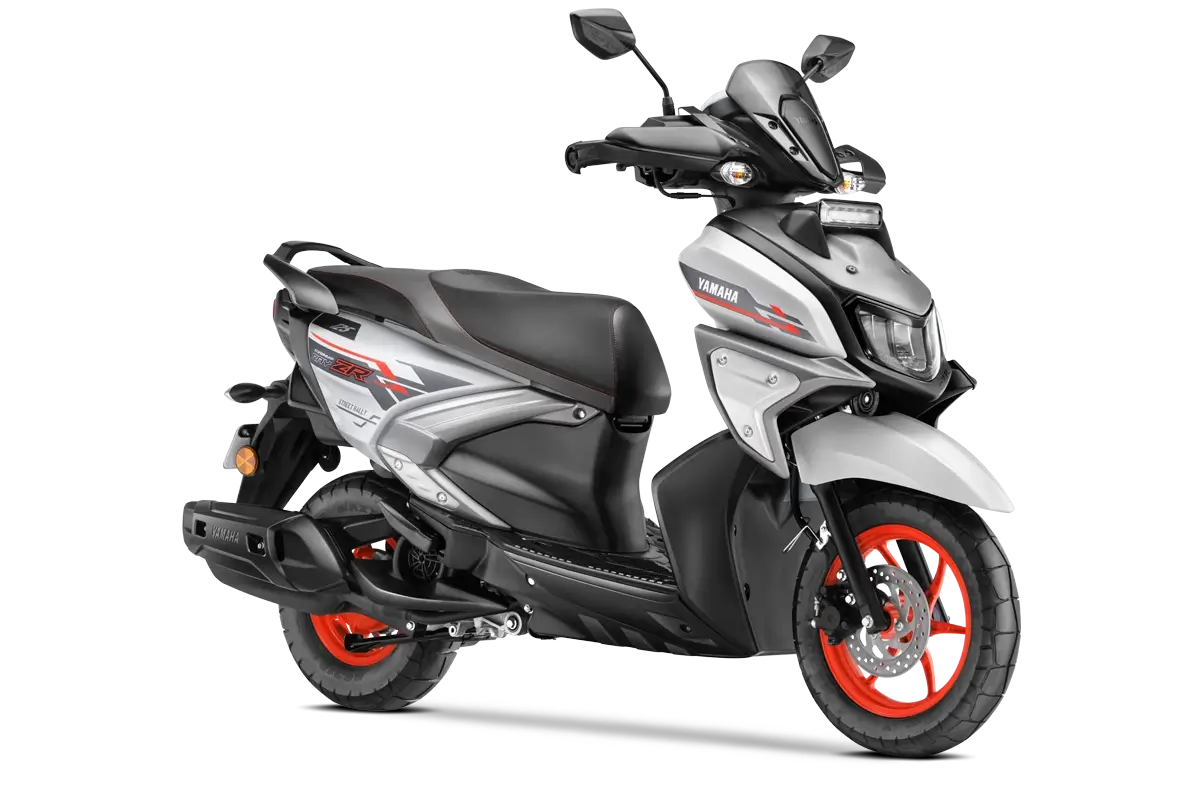

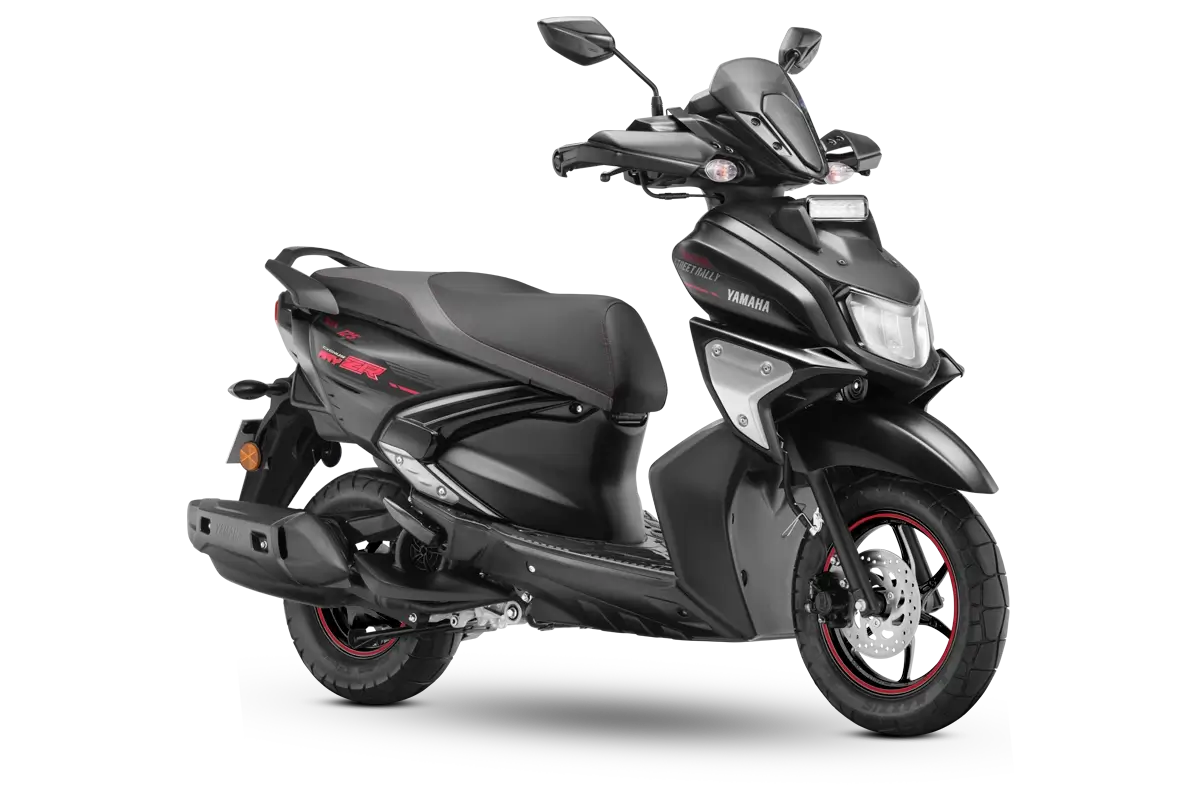

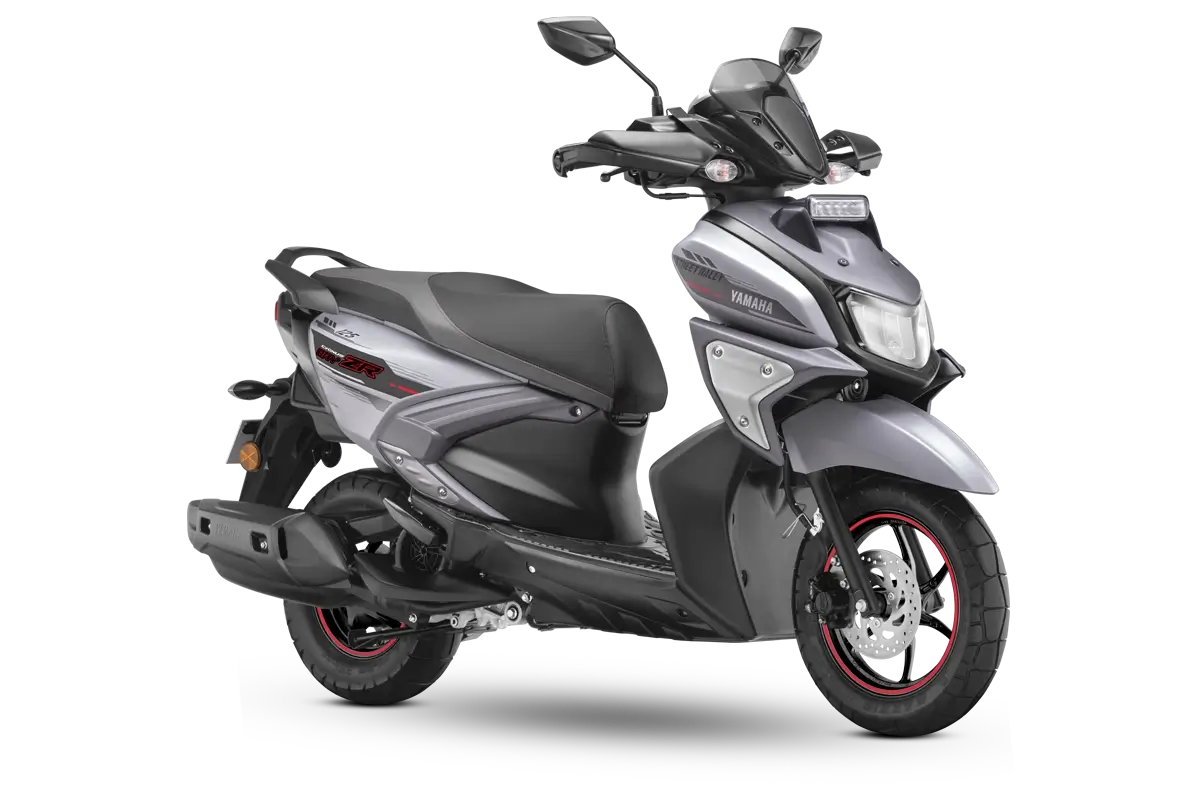

Level-up your game with the new and sporty Light Grey Vermillion and Matte Black RayZR Street Rally. Zip, zap, zoom ahead of the rest, command every turn with cool confidence. And while at it, captivate everyone around you with the electrifying colours. Go on, choose your shade and raise your game.

Motorcycle-Like Tough and Sporty Design

RayZR Street Rally 125 Fi is built on the concept of “Armoured Energy”. A sturdy built design and weight that’s at 99kgs makes your ride agile and quick. The “Motorcycle-Scooter Evolution” design from Yamaha is also reflected in the sporty and sharp characters of the Street Rally. The metal plate addition on the body enhances overall stylish character.

Performance

125cc Fi with Hybrid Power Assist Engine

The all new RayZR is powered by an air cooled, fuel injected (Fi), 125 cc blue core engine. The SMG charges the onboard battery. The SMG along with the engine produces 6.0kW(8.2PS) and up to 10.3 Nm torque for quicker acceleration when starting from a stop.

Great Mileage

Thanks to Blue Core Hybrid engine and Automatic Stop & Start System, enjoy in style without worrying about the mileage

Smart Motor Generator - Silent Start

It enables you to turn on the engine quietly and easily, whenever you are ready to go.

Comfort

Front Disc Brake with UBS

Enjoy the best ride quality on any road condition. The 90/90-12 front tyre and cast wheel combined with a disc brake setup delivers impeccable riding control, safety and comfort.

Two Level Seat

Seating position is as crucial for the pillion as it is for the rider, the two level seating provides great comfort to the riders and a distinctive silhouette that sets it apart from its peers.

Two Level Seat

Seating position is as crucial for the pillion as it is for the rider, the two level seating provides great comfort to the riders and a distinctive silhouette that sets it apart from its peers.

Features

Light Weight Body

The new RayZR is built like a tank but doesn’t weigh like one. At 99 kgs, The reduced weight gives you a great pick up, better handling and better mileage.

Telescopic Suspension

RayZR uses telescopic suspension in front and gives you control no matter which terrain you decide to ride on. With this innovative suspension setup, every road feels like a smooth ramp no matter what its condition.

E20 Fuel Compatible

E20 Fuel reduces the emissions and is wonderful option for cutting down on pollution. As part of our carbon reduction commitments, We have updated the RayZR to be compatible with E20 Fuel.
