Specifications

Engine Type Air cooled, 4-stroke,SOHC, 2-valve
Hybrid Equipped
Displacement 125 cc
Bore & Stroke 52.4x57.9mm
Compression Ratio 10.2:1
Maximum Horse Power 6.0kW(8.2PS)/6500r/min
Maximum Torque (With Assist Function Working) 10.3 N.m(1.1kgf.m)/5000 r/min
Stop & Start System (SSS) Equipped
Fuel System Fuel injection
Starting System Type Electric starter and kick starter
Transmission type V-Belt Automatic
Smart Motor Generator(SMG) System Equipped
Overall Length x Width x Height Disc/Drum:1,880 x 685 x 1,190 (Spec. in mm)
Seat Height 785mm
Wheelbase 1280mm
Minimum Ground Clearance 145mm
Weight (with Oil & a Full Fuel Tank) 98kg
Fuel tank capacity 5.2 L
Underseat Storage 21 L
Suspension Type(Front/Rear) Telescopic Fork/Unit Swing
Tyre Size (Front) 90/90-12 Tubeless
Tyre Size (Rear) 110/90-10 Tubeless
UBS Equipped
Brake type (Front) Disc: 190mm Drum: 190mm
Brake type(Rear) Drum
Battery Maintenance free - 12V,5.0 Ah
Ignition system TCI (Transistor Controlled Ignition)
Headlight (Class C) Disc: LED Drum: Halogen 12V,35/35W x 1
Brake light/Tail light 12V,21/5W x 1
Position Light LED
Side Stand Engine Cut-Off Switch Equipped
Meter Console Disc: Digital / Drum : Analogue
Bluetooth (Yamaha Motorcycle Connect X) Disc: Equipped Drum: Available as accessory

SHANDAAR DUMDAAR MILEDAAR -
IT'S RAYZR YAAR

The all new RayZR 125 Fi with Hybrid power assist is powered by air cooled, fuel injected (Fi), 125 cc blue core engine that produces a power output which is +30% and fuel economy +16% higher compared to the earlier 113 cc scooter and the body weight is 99 kgs, which is 4 kgs lighter than Yamaha’s earlier scooters. The unique “Automatic Stop & Start System” prevents engine idling and subsequently starts with a single throttle twist which uses the sensors to assess the riding environment. The “Smart motor generator (SMG)” fitted to the new RayZR 125 Fi Hybrid brings a quieter engine start without the need for a separate conventional electric starter. The newly designed headlight with *LED Position Light for enhanced visibility. It comes with *Digital Meter Console and *YMCC –X Bluetooth connectivity to create a strong bond between scooter and Rider.

*Digital meter, LED Headlight & YMCC-X features available in Disc variant only.

Motorcycle-Like Tough and Sporty Design

RayZR 125 Fi is built on the concept of “Armoured Energy”. A sturdy built design and weight that’s at 99Kgs makes your ride agile and quick. The “Motorcycle-Scooter Evolution” design from Yamaha is also reflected in the sporty and sharp characters of the Street Rally. The new metal plate addition on the body enhances overall stylish character.

Performance

New 125cc Fi with Hybrid Power Assist Engine

The all new RayZR 125 Fi Hybrid is powered by an air cooled, fuel injected (Fi), 125 cc blue core engine. The SMG charges the onboard battery. The SMG along with the engine produces 8.2 PS and up to 10.3 Nm (0.6 Nm higher than the previous RayZR 125FI) torque for quicker acceleration when starting from a stop.

30% more Power

ASCENT ACCELERATION
Drive force at the rear wheel at low speeds has been improved by 30%.
STANDING ACCELERATION
The boost in acceleration from 0 to 200 metres results in an advantage equivalent to more than seven bikes in length over the 113 cc model.
PASSING ACCELERATION
Power in the 30-60 km/h range, pivotal for overtakes, has been improved by 30%.
*Compared to the 113 cc models

Color

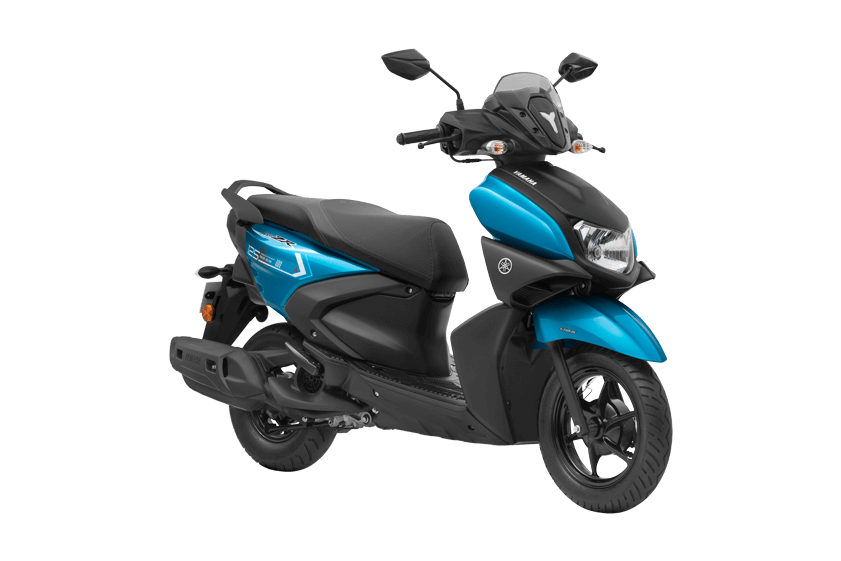

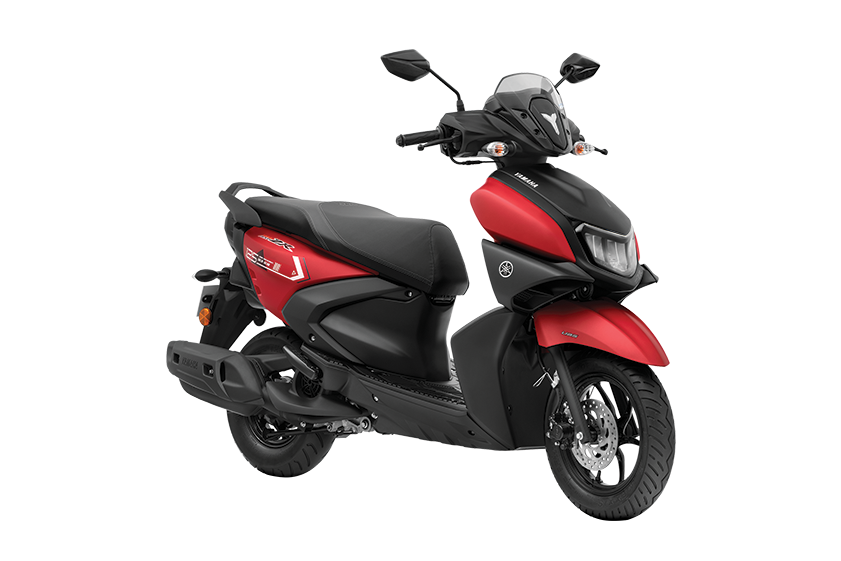

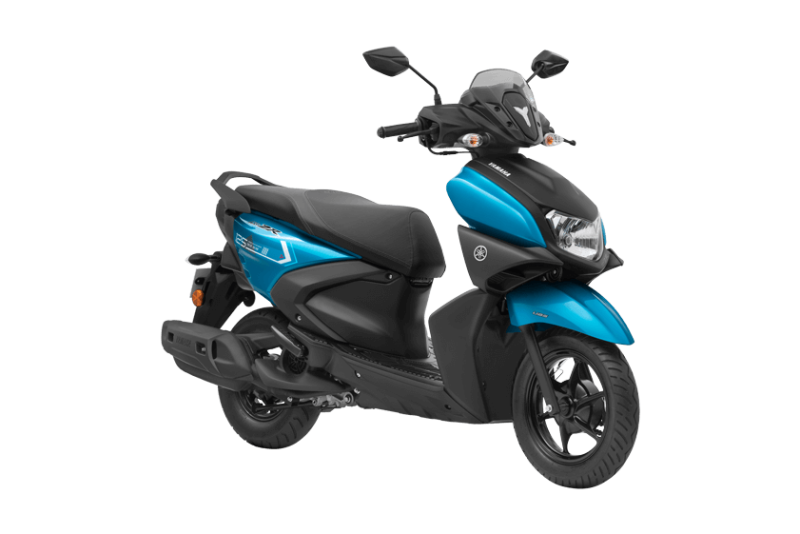

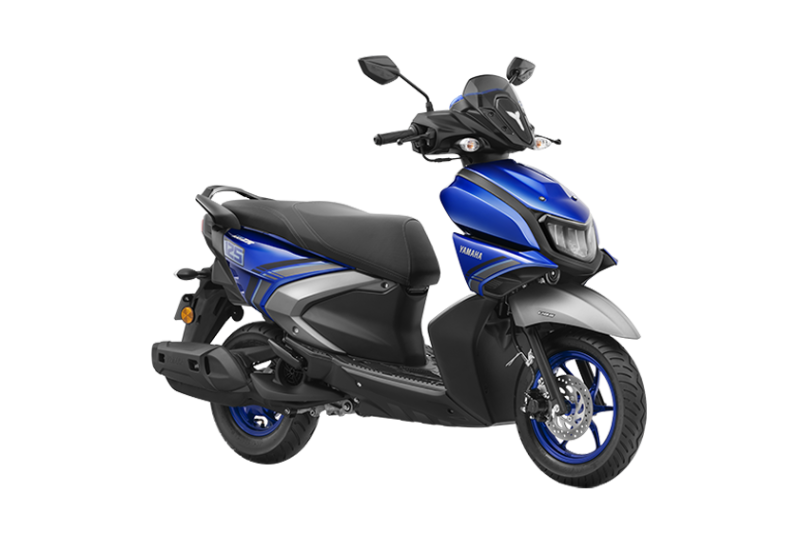

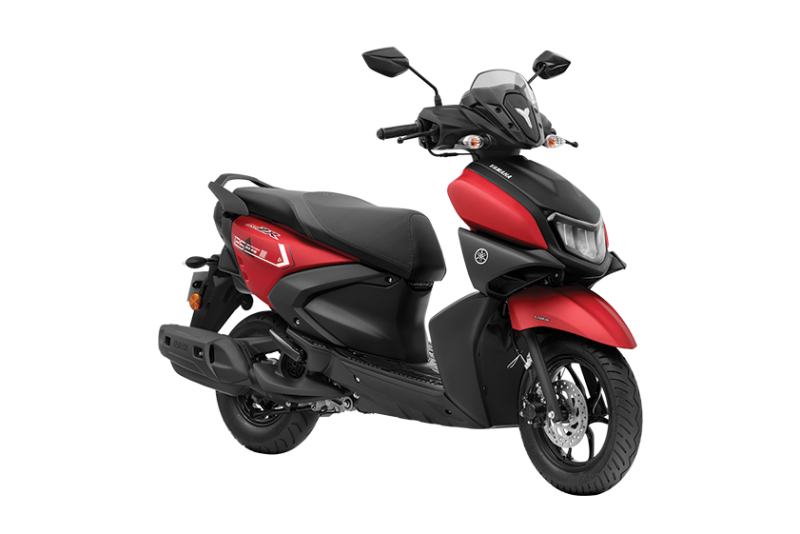

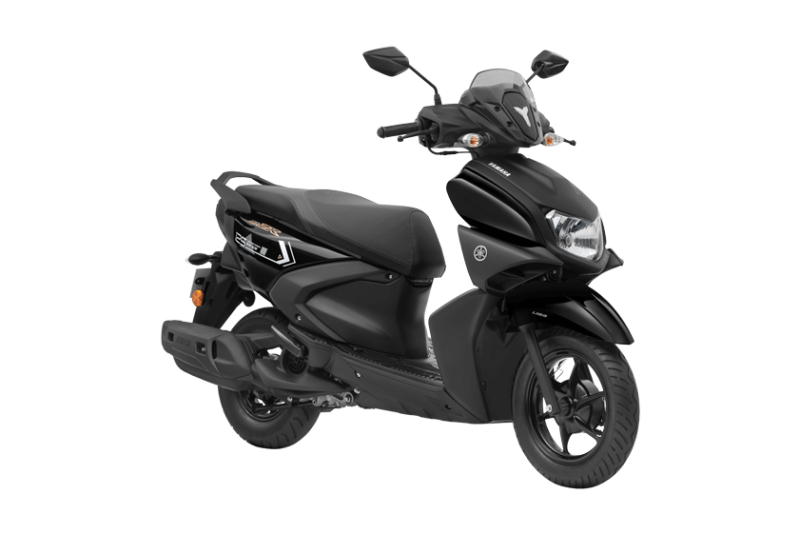

METALLIC BLACK, CYAN BLUE, MATTE RED, RACING BLUE, Dark Matte Blue

Model

RayZR Drum, RayZR Disk
